MPS PT-DYN-E-2-10M-1/2-6/18-DA-J-SIL2 Melt Pressure Sensors

Brand: MPS

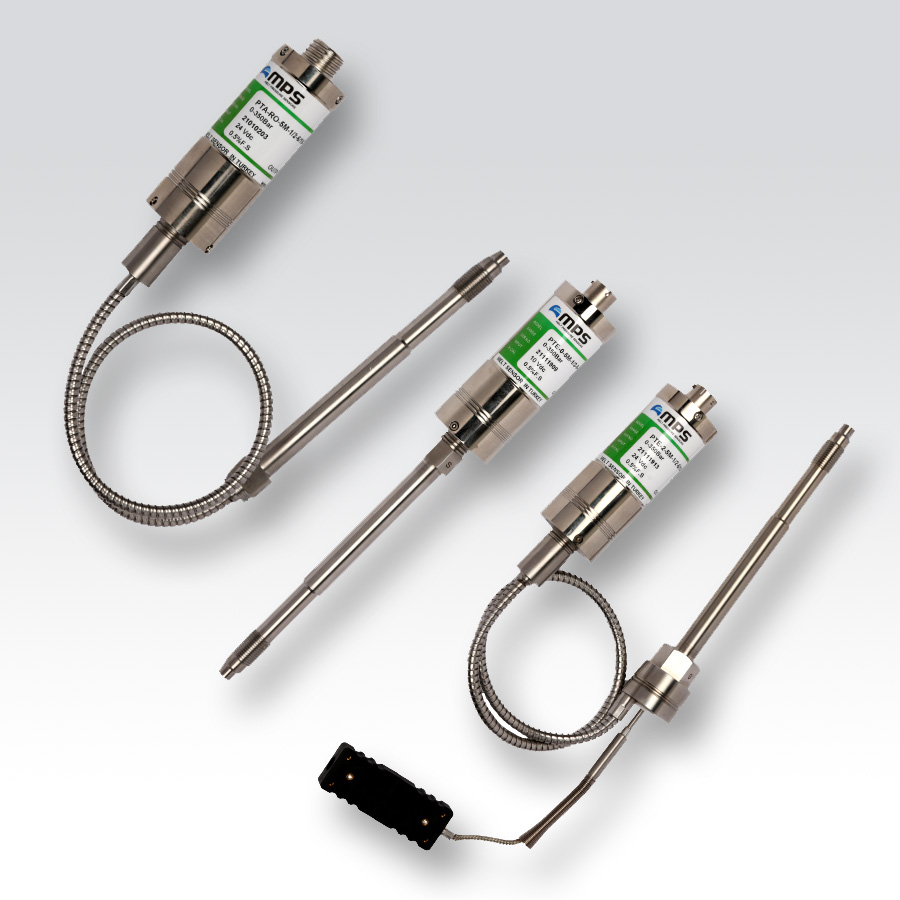

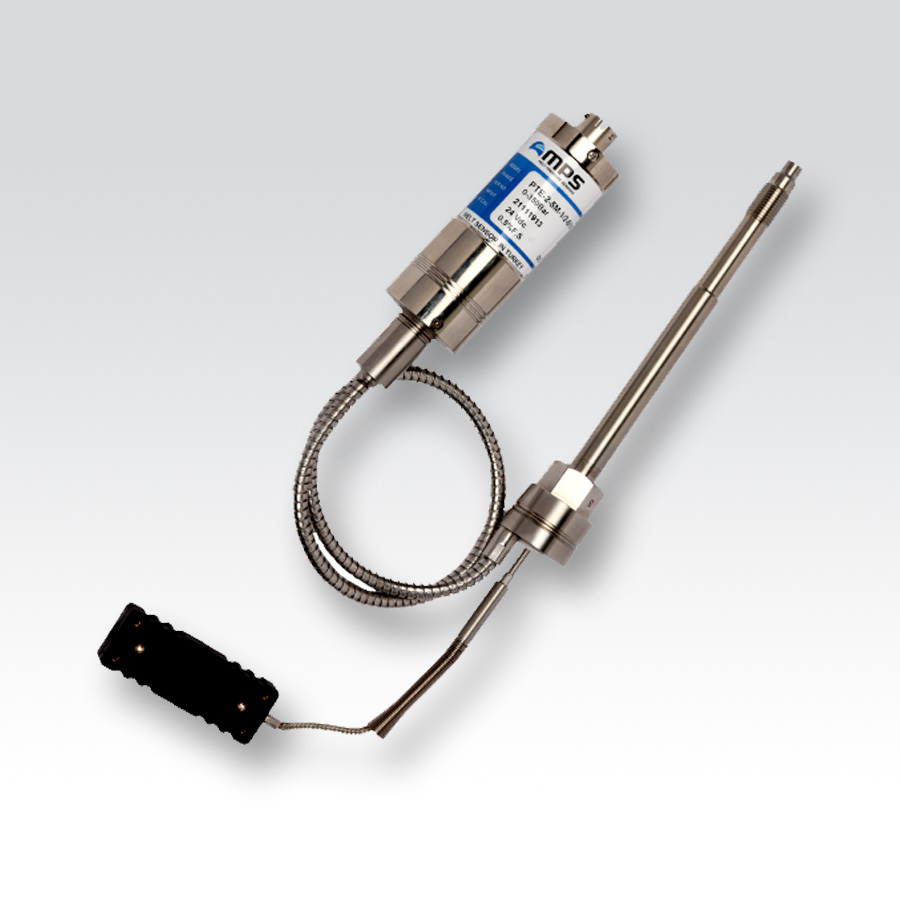

MPS PT-DYN-E-2-10M-1/2-6/18-DA-J-SIL2 Melt Pressure Sensors

High temperature resistant Body

• Precise and long-lasting Melt Pressure Sensor

• Measurement options from 0...35 bar to 0...2000 bar

• mV/V, V or mA Output Options

• 0.25% or 0.5% F.S sensitivity

• IP65 or IP55 protection class

• Compact structure

• 5 PIN,6 PIN,7 PIN,8 PIN Socket Structures

Request a Quote

Explanation

GENERAL FEATURES

Long-lasting and sensitive Melt Pressure Sensor

Measurement option up to 2000 bar

High sensitivity: 0.25% or 0.5% FS

± 0.1 %FS repeatability

Special G-coating membrane resistant to adhesive materials

Minimum sensitivity loss against temperature changes: ± 0.02 bar / °C

Different Diaphragm Options

AREAS OF USE

Plastic Machinery

Food industry (Mercury-free NTX technology models)

Pharmaceutical industry (Mercury-free NTX technology models

Pipe Machinery

Cable coating industry

Technical Information

TECHNICAL SPECIFICATIONS

Pressure Range: 0...35 to 0...2000 bar.

Accuracy: 0.25 % F.S or 0.5 % F.S

Repeatability: ± 0.1 %

Membrane Coating: G-coating

Resolution: Infinite

Maximum Overpressure Load:

Up to 1000 bar x 2

After 1000 bar x 1.5

Bridge Resistance: 350 Ohm

Supply Voltage: 10 VDC max.

Output Signal: 2 mV/V, 3.33 mV/V, V ,mA

Transmission Medium: NTX as Standard

Mechanical Connection: 1/2”20 UNF, M14 x 1.5, M16 x 1.5, M18 x 1.5

Calibration Point: 80 %

Insulation Resistance: >1000 MOhm @ 50 V

Maximum Temperature on Diaphragm: 300 °C NTX

400 °C HG

500 °C NAK

Maximum Operating Temperature: - 40... +125 °C

Protection Class: IP65 / IP55

Maximum Torque:

1/2”20 UNF 30 Nm , M14x1.5 50Nm, M16x1.5 50Nm

M18 x 1.5 50 Nm
