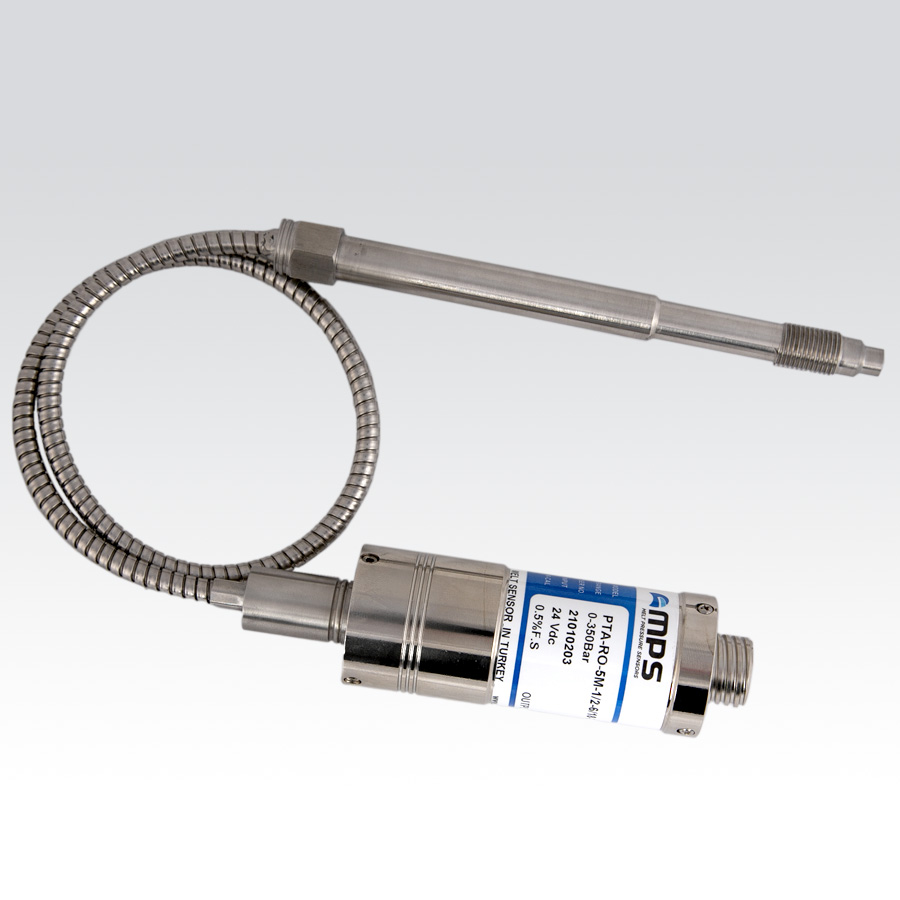

MPS PT-H-E-1-5M-1/2-6/18-DMV Melt Pressure Sensors

MPS PT-H-E-1-5M-1/2-6/18-DMV Melt Pressure Sensors

Brand: MPS

MPS PT-H-E-1-5M-1/2-6/18-DMV Melt Pressure Sensors

High temperature resistant Body
Precise and long-lasting Melt Pressure Sensor
Measurement options from 0 ... 35 bar to 0 ... 2000 bar
mV / V, V or mA Output Options
0.25% or 0.5% F.S precision
IP65 or IP55 protection class
Compact structure

5 PIN, 6 PIN, 7 PIN, 8 PIN Socket Structures

Request a Quote

Explanation

GENERAL FEATURES

Digital Indicator Series
Long-lasting and precise Melt Pressure Sensor
Measurement options up to 2000 bar
High sensitivity: 0.25% or 0.5% FS
± 0,1% FS repeatability
Special G-coating membrane resistant to adhesive materials
Minimum loss of sensitivity to temperature changes: ± 0.02 bar / ° C
5 Different Diaphragm Options:

Usage Areas

Plastic Machinery
Food industry (Mercury-free NTX technology models)
Pharmaceutical industry (Mercury-free NTX technology models
Pipe Machines
Cable coating industry

Technical Information

TECHNICIAL SPECIFICATIONS

Pressure Range: 0 ... 35 to 0 ... 2000 bar.

Accuracy: 0.25% F.S or 0.5% F.S

Repeatability: ± 0.1%

Membrane coating: G-coating

Resolution: Infinite

Maximum overpressure load:

Up to 1000 bar x 2

After 1000 bar x 1.5

Bridge resistance: 350 Ohm

Supply voltage: 10 VDC, 24DVC max.

Output signal: mA

Transmission medium: NTX as standard

Mechanical connection: 1/2 ”20 UNF, M14 x 1.5, M16 x 1.5, M18 x 1.5

Calibration point: 80%

Insulation resistance:> 1000 MOhm @ 50 V

Maximum temperature in diaphragm: 300 ° C NTX

400 ° C HG

500 ° C NAK

Maximum operating temperature: - 40 ... +125 ° C

Protection class: IP65 / IP55

Maximum Torque:

1/2 ”20 UNF 30 Nm, M14x1,5 50Nm, M16x1,5 50Nm

M18 x 1.5 50 Nm
